SLP74LVC2G04
DUAL INVERTER
Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

    The SLP74LVC2G04 is a dual inverting buffer designed for 1.65V to 5.5V VCC operation. Inputs can be driven from either 3.3V or 5V devices. The device performs the function Y=A(—).

    The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.


Main feature

  • Supports from 1.65V to 5.5V operation

  • Inputs accept voltages to 5.5V

  • ±24mA output driver (VCC = 3V)

  • Direct interface with TTL levels

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 250mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC2G04KCTR SOT-23-6L 2G04 Halogen free Tape & Reel
SLP74LVC2G04KETR SOT-363-6L S5 Halogen free Tape & Reel

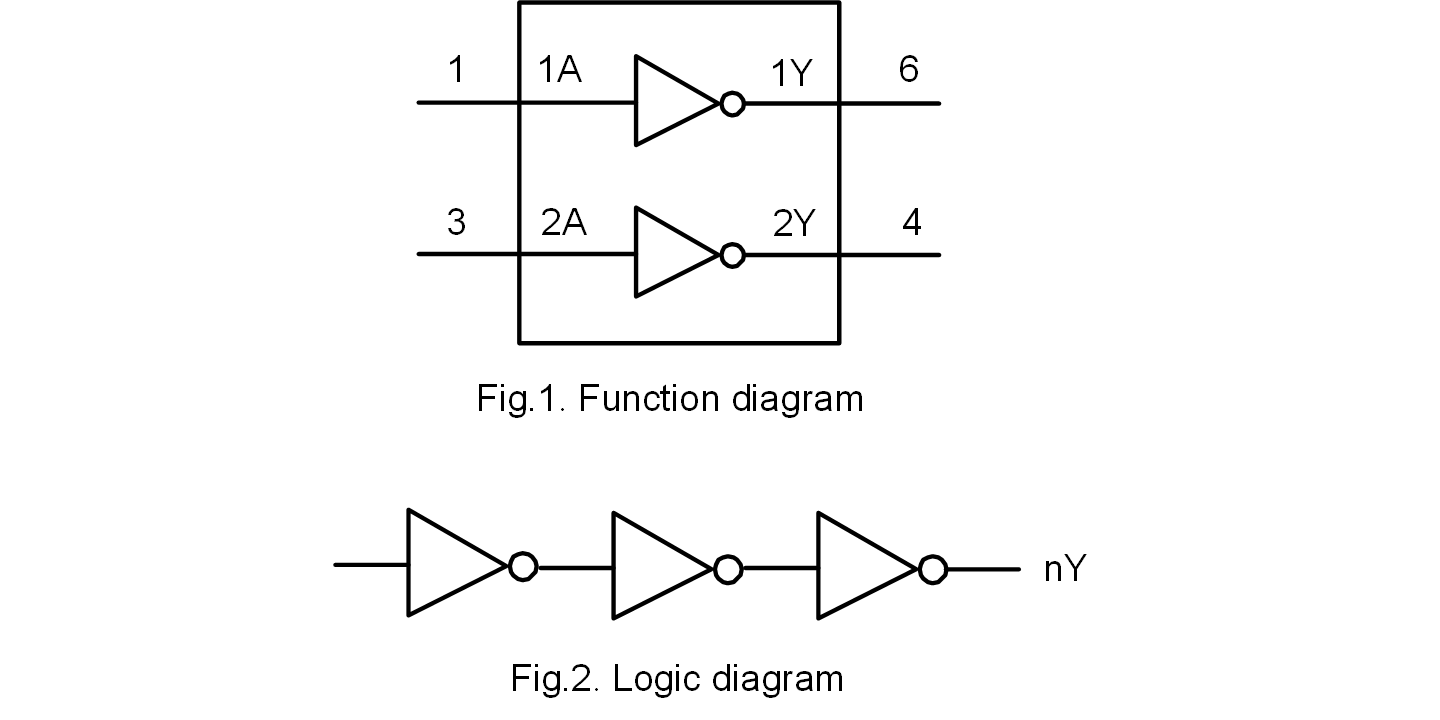

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74LVC2G04 0 1970-01-01 SLP74LVC2G04 Brief Datasheet
