SLP74LVC126A
QUAD BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS
Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

     The SLP74LVC126A consists of four non-inverting buffers/line drivers with 3-state outputs. Each output is disabled.
when the associated output-enable (OE) input is low. A LOW at nOE causes the outputs to assume a high-impedance OFF-state.

     Inputs can be driven from either 3.3V or 5V devices. When disabled, up to 5.5V can be applied to the outputs.


Main feature

  • Inputs accept Voltages to 5V

  • Operate from 1.2V to 3.6V

  • CMOS low power consumption

  • Direct interface with TTL levels

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 250mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC126AJY TSSOP-14-225-0.65 LVC126A Halogen free Tube
SLP74LVC126AJYTR TSSOP-14-225-0.65 LVC126A Halogen free Tape & Reel

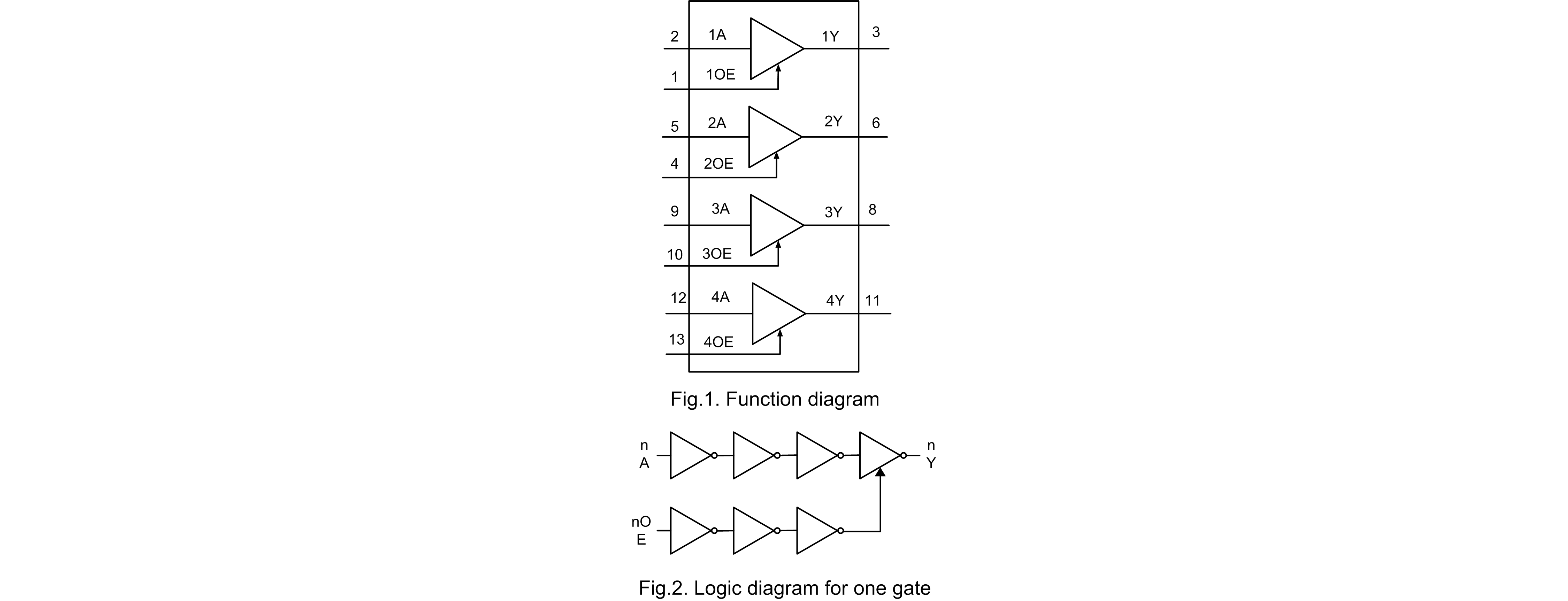

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74LVC126A 0 1970-01-01 SLP74LVC126A Brief Datasheet
