SDM05M50DBE/DBS
INTELLIGENT POWER MODULE(IPM), 3 PHASE FULL-BRIDGE 500V/5A

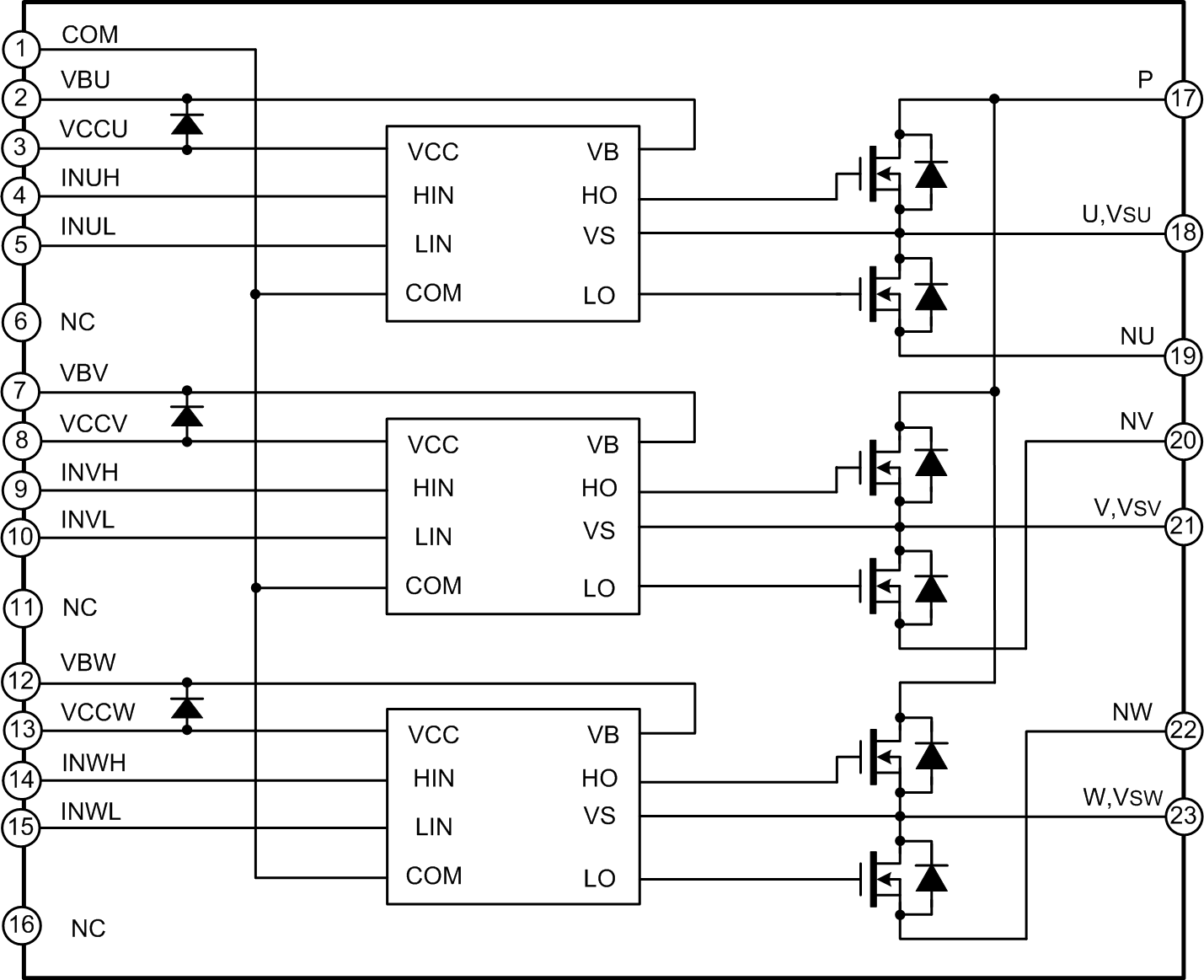

SDM05M50DBE/DBS is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3 half-bridge HVIC for gate driving.
SDM05M50DBE/DBS integrates under-voltage protection circuit, providing perfect protection and fail-safe operation. Each phase current of inverter can be monitored separately due to divided negative dc terminals.
SDM05M50DBE/DBS is designed with good insulation, perfect thermal properties and low EMI. It is compact and suitable for built-in motors or any other applications requiring the compact installation.
Main feature
Built-in 500V/5A fast recovery MOSFET
Built-in high-voltage Gate driver circuit（HVIC）
Built-in under-voltage protection
Built-in bootstrap diode
Compliant with 3.3V and 5V MCU interface, active high
3 independent negative DC-link terminals for inverter current sensing
Optimal adapted for low EMI
Insulation class: 1500Vrms/min
Ordering Information
| Product Name |
Package form |
Marking |
Hazardous Substance Control |
Packing Type |
Remarks |
| SDM05M50DBE |

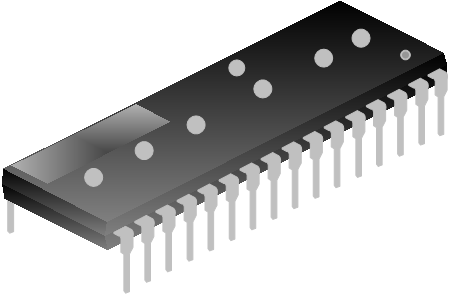

DIP-23E |
SDM05M50DBE |
Pb free |
Tube |
|
| SDM05M50DBS |

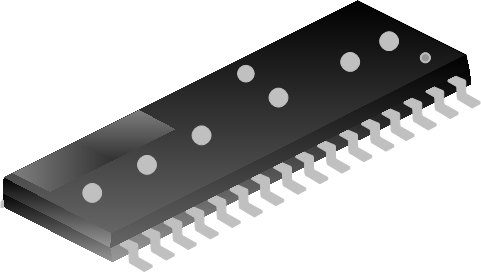

SOP-23H |
SDM05M50DBS |
Pb free |
Tube |
|
| SDM05M50DBSTR |
SOP-23H |
SDM05M50DBS |
Pb free |
Tape&Reel |
|
